Overview:Product descriptionThis product can indirectly heat or cool paste, granular, powder, and slurry materials, and can complete unit operations such as drying, cooling, heating, sterilization, reaction, and low-temperature combustion. The special wedge-sh…
Product description
This product can indirectly heat or cool paste, granular, powder, and slurry materials, and can complete unit operations such as drying, cooling, heating, sterilization, reaction, and low-temperature combustion. The special wedge-shaped stirring heat transfer blade in the equipment has a higher heat transfer efficiency and self-cleaning function of the heat transfer surface.
Working principle

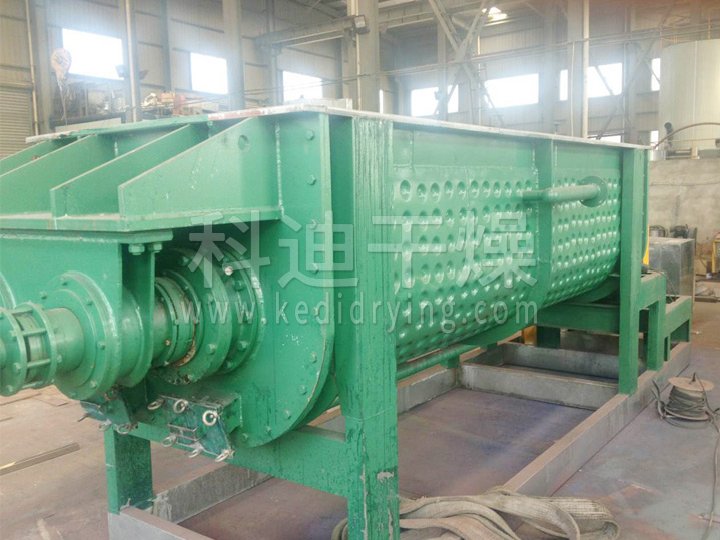

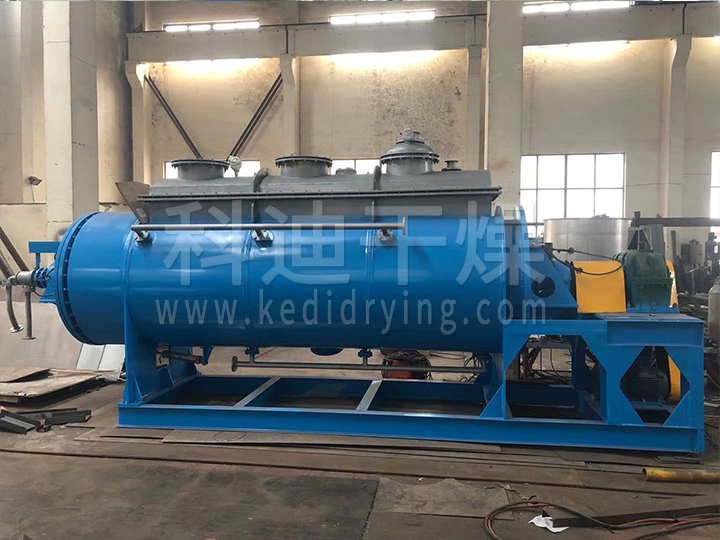

Wedge-shaped hollow blades are densely arranged on the hollow shaft, and the heat medium flows through the blades through the hollow shaft. The heat transfer area in the unit effective volume is large, and the temperature of the heating medium ranges from -40°C to 320°C. It can be steam or liquid: such as hot water, heat transfer oil, etc. Indirect conduction heating, no air is carried to take away heat, and the heat is used to heat the material. The heat loss is only the heat dissipation to the environment through the insulation layer of the body. The heat transfer surface of the wedge-shaped blade has a self-cleaning function. The relative movement of the material particles and the wedge-shaped surface produces a scrubbing effect, which can wash off the attached material on the wedge-shaped surface, so that a clean heat transfer surface is maintained during operation. The shell of the blade dryer is Ω type, and two to four hollow stirring shafts are generally arranged in the shell. The shell has a sealed end cover and an upper cover to prevent material dust from leaking out and give full play to its effect.
The heat transfer medium flows through the shell jacket and the hollow stirring shaft through the rotary joint. The hollow stirring shaft has different internal structures according to the type of heat medium to ensure a better heat transfer effect.
Performance characteristics
◎Low energy consumption of the paddle dryer: Due to indirect heating, there is no large amount of air to take away the heat. The outer wall of the dryer is provided with an insulation layer. For slurry materials, only 1.2kg of water vapor is needed to evaporate 1kg of water.
◎The cost of the paddle dryer system is low: The unit effective volume has a huge heat transfer surface, which shortens the processing time and reduces the size of the equipment. This greatly reduces the building area and building space.
◎Wide range of processing materials: Using different heat media, it can process heat-sensitive materials as well as materials that require high-temperature processing. Commonly used media are: steam, heat transfer oil, hot water, cooling water, etc.It can be operated continuously or intermittently, and can be used in many fields.
◎Environmental pollution is small: No air is used, and dust materials are rarely entrained. The solvent evaporation of the material is very small, which is easy to handle. For contaminated materials or working conditions that require solvent recovery, use Closed loop.
◎Low operating cost: structure. The amount of wear is small and the maintenance cost is very low.
◎Stable operation: Due to the special compression-expansion and stirring effect of the wedge-shaped blade, the material particles are fully in contact with the heat transfer surface. In the axial interval, the temperature, humidity, and mixing degree gradient of the material are small, thereby ensuring the process The stability.
Adapt to materials
Pad dryers have been successfully used in food, chemical, petrochemical, dye, industrial sludge and other fields. The characteristics of heat transfer, cooling, and stirring of the equipment enable it to complete the following unit operations: combustion (low temperature), cooling, drying (solvent recovery), heating (melting), reaction and sterilization. The stirring blade is also a heat transfer surface, which increases the heat transfer area in the unit effective volume and shortens the processing time. The wedge-shaped blade heat transfer surface has a self-cleaning function. Compression-expansion stirring function makes the material mixed evenly. The material moves in a "piston flow" along the axial direction. In the axial interval, the temperature, humidity, and mixing degree gradient of the material are very small. Using thermal oil as the heating medium paddle dryer can complete low-temperature combustion. Such as: calcium sulfate dihydrate (Ca2SO4·2H2O) is burned into calcium sulfate hemihydrate (Ca2SO4·1/22H2O). Sodium bicarbonate (NaHCO3) is converted into soda ash (Na2HCO3) after calcination. The cooling medium can be used for cooling, such as water, cooling brine, etc. For example, the paddle-type alkali cooler used in the soda ash industry replaces the old air-cooled soda cooler, which saves energy and exhaust gas treatment equipment, and reduces operating costs. The main function of drying equipment does not use hot air, so that solvent recovery, energy consumption, and environmental control are in an ideal state of easy handling. It is especially suitable for the need to recover solvents, flammable and oxidizable heat-sensitive materials. It has been widely used in fine chemical, petrochemical and dye industries. In the axial range, the uniformity of temperature, humidity, and mixing degree enables the equipment to be used for heating or melting, or for some solid material reactions. It has been successfully used in compound fertilizer and modified starch industries. The paddle dryer can be used to sterilize food and flour. The large heating area in the unit effective volume can quickly heat the material to the sterilization temperature, avoiding long-time heating and changing the quality of the material.
Installation structure diagram
Technical specifications
Item/Model | JYG3 | JYG9 | JYG13 | JYG18 | JYG29 | JYG41 | JYG52 | JYG68 | JYG81 | JYG95 | JYG110 |
Heat transfer area (m2) | 3 | 9 | 13 | 18 | 29 | 41 | 52 | 68 | 81 | 95 | 110 |
Effective volume (m3) | 0.06 | 0.32 | 0.59 | 1.09 | 1.85 | 2.8 | 3.96 | 5.21 | 6.43 | 8.07 | 9.46 |
Speed range (rmp) | 15-30 | 10-25 | 10-25 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 5-15 | 5-15 | 5-10 |
Power (kw) | 2.2 | 4 | 5.5 | 7.5 | 11 | 15 | 30 | 45 | 55 | 75 | 95 |
Body width A (mm) | 306 | 584 | 762 | 940 | 1118 | 1296 | 1476 | 1652 | 1828 | 2032 | 2210 |
Overall width B (mm) | 736 | 841 | 1066 | 1320 | 1474 | 1676 | 1854 | 2134 | 1186 | 2438 | 2668 |
Body width C (mm) | 1956 | 2820 | 3048 | 3328 | 4114 | 4724 | 5258 | 5842 | 6020 | 6124 | 6122 |
Total length D (mm) | 2972 | 4876 | 5486 | 5918 | 6808 | 7570 | 8306 | 9296 | 9678 | 9704 | 9880 |
In and out of material distance E (mm) | 1752 | 2540 | 2768 | 3048 | 3810 | 4420 | 4954 | 5384 | 5562 | 5664 | 5664 |
Center height F (mm) | 380 | 380 | 534 | 610 | 762 | 915 | 1066 | 1220 | 1220 | 1220 | 1220 |
Total height H (mm) | 762 | 838 | 1092 | 1270 | 1524 | 1778 | 2032 | 2362 | 2464 | 2566 | 2668 |
Steam inlet N (inch) | 3/4 | 3/4 | 1 | 1 | 1 | 1 | 11/2 | 11/2 | 11/2 | 11/2 | 2 |
Outlet O (inch) | 3/4 | 3/4 | 1 | 1 | 1 | 1 | 11/2 | 11/2 | 11/2 | 11/2 | 2 |
